Typical Applications
- Sizing of single-face and double-face laminated panels (melamine-coated chipboard, melamine MDF, HPL, acrylic, PET, PP laminated panels) on horizontal beam saws and panel sizing machines, using the PCD saw blade in combination with a scoring saw blade—producing chip-free edges on the laminated face or both faces.
- High-output panel processing lines in furniture manufacturing and panel distribution facilities, on machines including BIESSE, SCM, HOLZHER, HOLZMA, HOMAG, SCHELLING, NANXING, PANHANS, FELDER, and GIBEN horizontal beam saws and panel sizing centres.
- Applications where maximising time between blade changes and minimising total tooling cost per cut are the primary priorities.
Key Performance Advantages

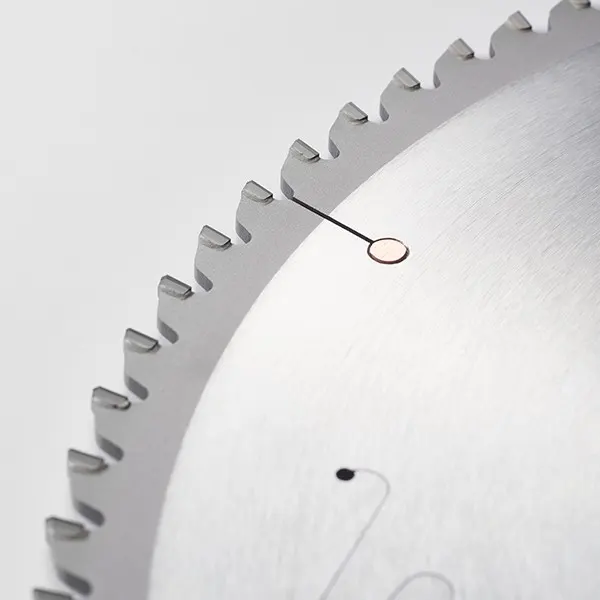

- PCD (polycrystalline diamond) tipped: PCD is the hardest available cutting tool material—delivering service life 10 times or more longer than tungsten carbide panel sizing saw blades under equivalent conditions, significantly reducing the frequency of blade changes and the associated production downtime.
- TCG tooth form for single-face and double-face laminated panels: flat top and chamfer geometry produces chip-free, clean edges on melamine, HPL, acrylic, PET, and PP laminated surfaces when used with a scoring saw blade—no delamination or edge breakout.
- Consistent edge quality maintained throughout the extended service life of the PCD saw blade, with no progressive deterioration in cut face finish as the blade approaches end of life.
- Low cutting resistance and stable running at high feed speeds due to anti-vibration body design (expansion slots with optional TPU fill), precision tensioning, and close dimensional tolerances matched to industrial machine spindle specifications.
Application Notes
- For single-face and double-face laminated panels, always use the PCD panel sizing saw blade together with a matching scoring saw blade; the scoring blade must be correctly set in depth and width alignment with the main blade kerf. See our Conical Scoring Saw Blades for Panel Sizing and PCD Conical Scoring Saw Blades for Panel Sizing.
- Confirm bore diameter, kerf width, pinhole pattern, and flange dimensions against machine specifications before ordering—industrial beam saw spindle configurations vary significantly across brands and models.
- PCD saw blade specifications can be customised to machine type, panel thickness, laminate type, and feed speed requirements. Contact us with your application details.
