Technical Information

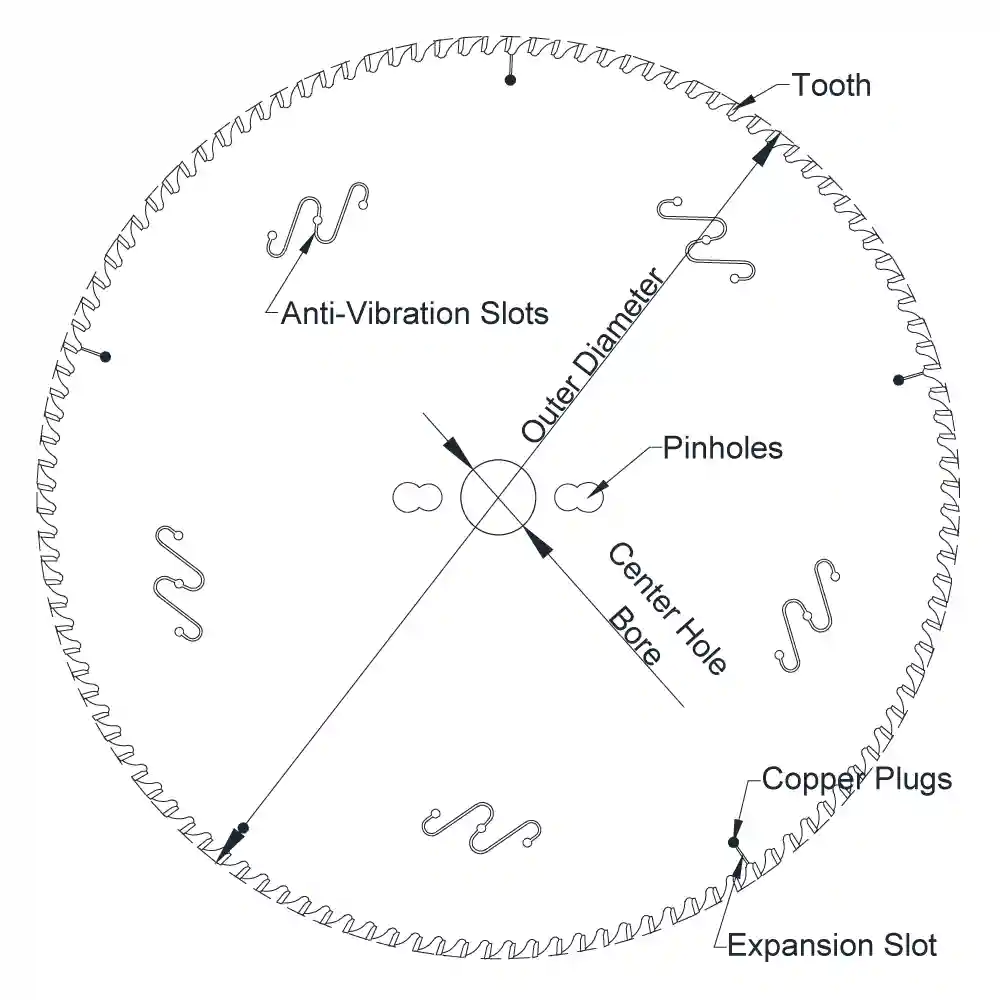

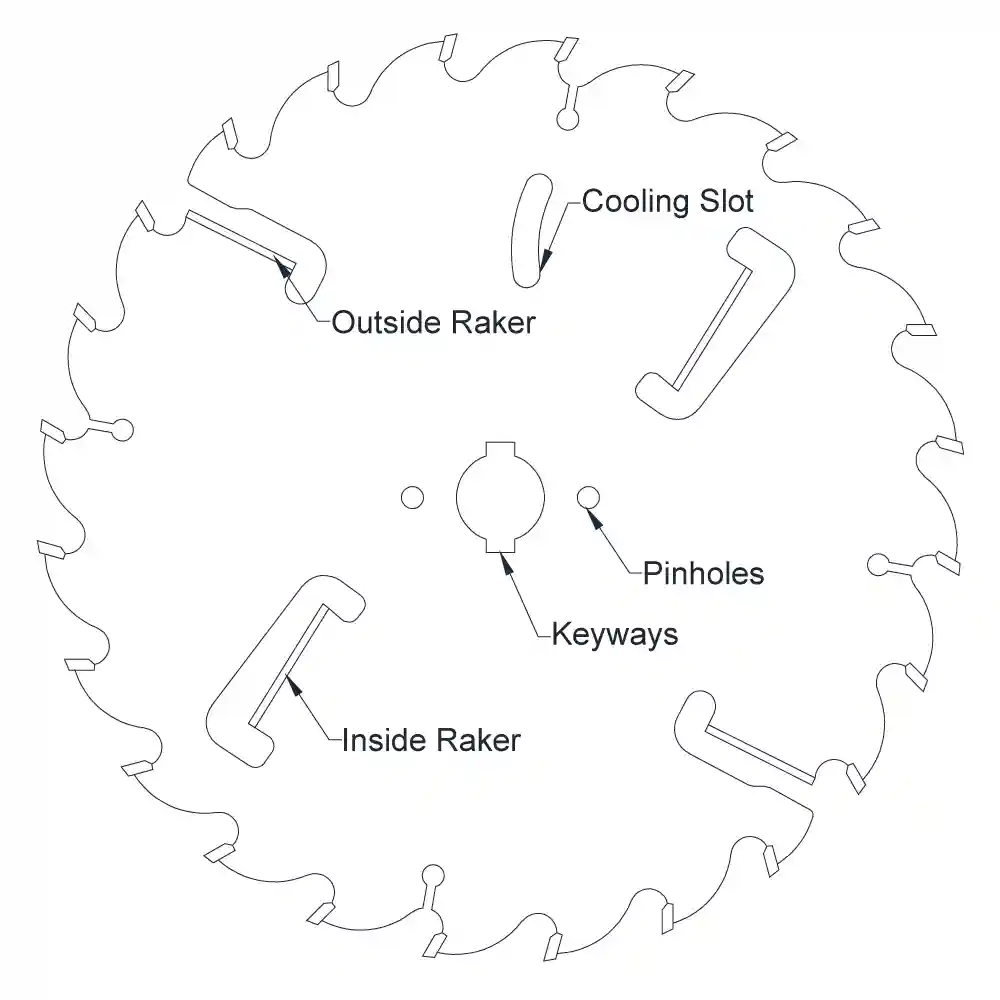

Circular Saw Blade Specifications

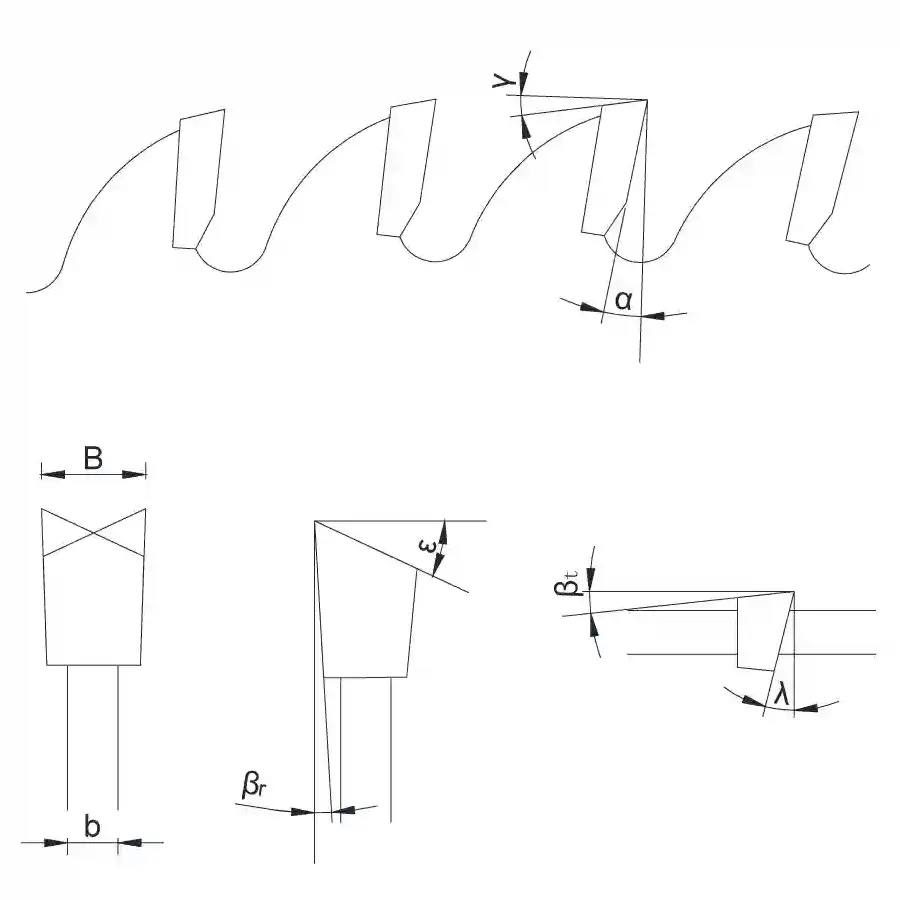

Tooth Terms
| Symbol | Description |
|---|---|
| α | Hook angle |
| γ | Clearance angle |
| ε | Top bevel angle |
| λ | Face bevel angle |
| βr | Radial clearance angle |
| βt | Tangential clearance angle |
| B | Kerf / Width of cut |
| b | Body thickness |
Typical Tooth Geometries
| Diagram | Tooth Type |
|---|---|

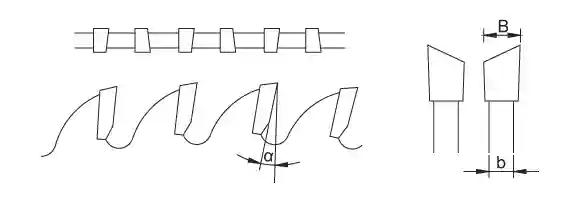

 | ATB |

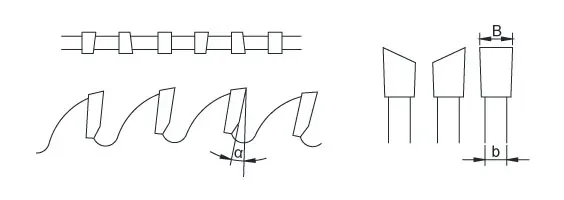

 | ATB3 |

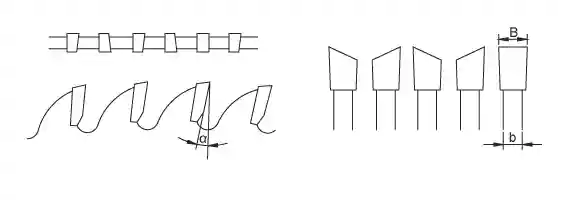

 | ATB5 |

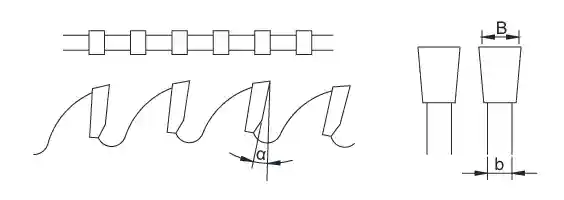

 | FTG |

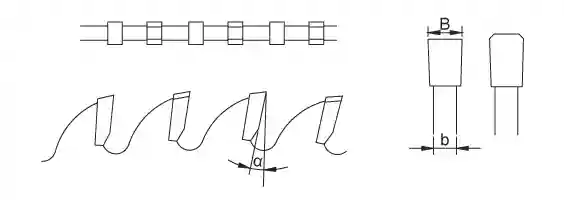

 | TCG |

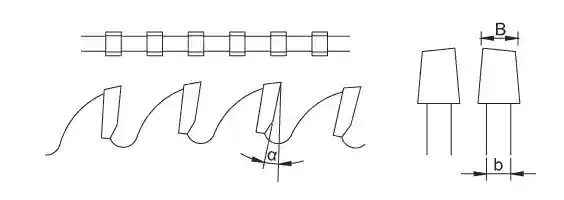

 | Conical-A |

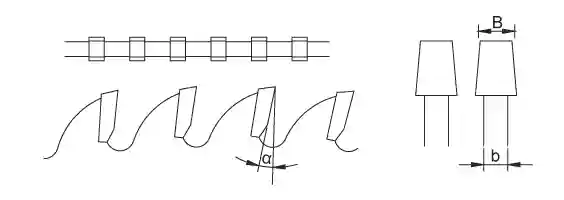

 | Conical-F |

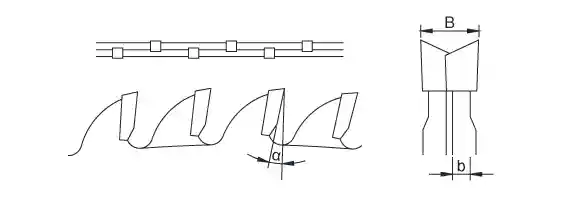

 | Conical-S |
| Diagram | Tooth Type |
|---|---|
 | 3L1R |

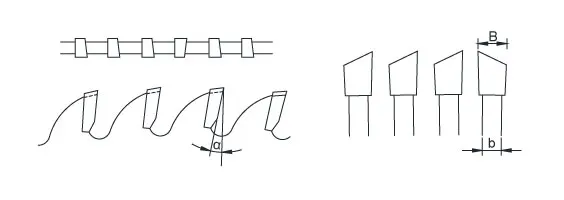

 | 3R1L |

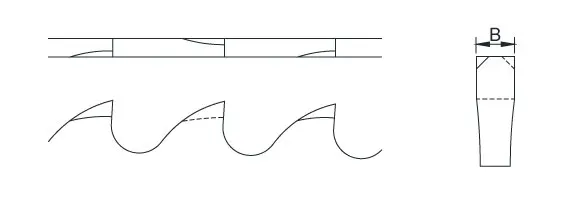

 | BW |

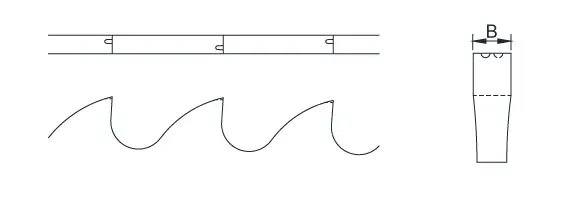

 | BR |

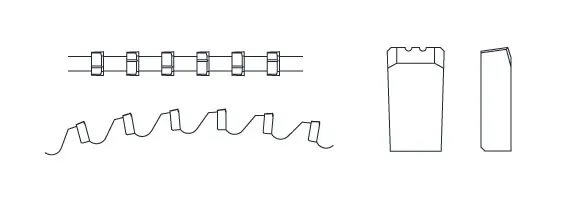

 | TA |

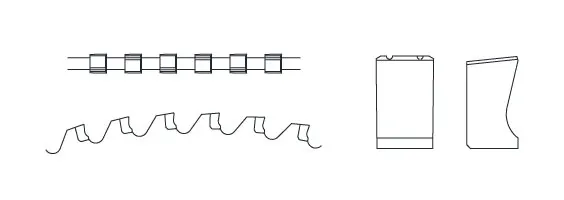

 | TB |

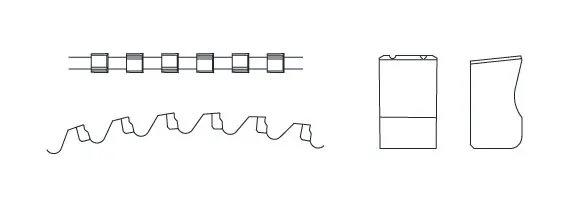

 | TC |

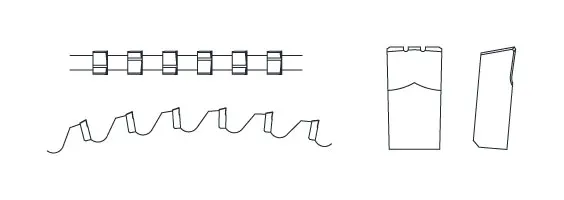

 | TD |
Cutting Speed Calculation Formula
V = π × D × N / 1000
V: Cutting speed (peripheral speed), m/min
D: Outer diameter of saw blade, mm
N: Rotational speed of saw blade, min⁻¹
π: Pi≈3.14
Chip Load Calculation Formula
Fz = F × 1000 / (N × Z)
Fz: Chip load, mm/tooth
F: Feed speed, m/min
N: Rotational speed of saw blade, min⁻¹
Z: Number of teeth
Maximum Operating Speed
The table below indicates the maximum allowable RPM based on the saw blade outer diameter and body thickness.
| Body Thickness (mm) | Outer Diameter of Saw Blade (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 205 | 255 | 305 | 355 | 405 | 455 | 500 | 550 | 600 | 650 | |
| 0.8 | 5500 | 4000 | 3100 | — | — | — | — | — | — | — |
| 1.0 | 6900 | — | — | — | — | — | — | — | — | — |
| 1.2 | 8300 | 4800 | 3700 | 2600 | 2100 | — | — | — | — | — |
| 1.4 | 9700 | 5700 | 4400 | 3100 | 2500 | — | — | — | — | — |
| 1.6 | 11100 | 6500 | 5000 | 3500 | 2800 | 2200 | 1800 | — | — | — |
| 1.8 | 12500 | 7300 | 5600 | 4000 | 3200 | 2500 | 2000 | — | — | — |
| 2.0 | 13900 | 8100 | 6300 | 4400 | 3600 | 2700 | 2200 | 1900 | 1700 | — |
| 2.2 | — | 8900 | 6900 | 4900 | 3900 | 3000 | 2400 | — | — | — |
| 2.4 | — | 9900 | 7500 | 5300 | 4300 | 3300 | 2700 | 2100 | 1900 | 1700 |
| 2.6 | — | — | 8200 | 5800 | 4600 | 3600 | 2900 | 2300 | 2000 | — |
| 2.8 | — | — | 8800 | 6200 | 5000 | 3900 | 3100 | 2500 | 2200 | 1800 |
| 3.0 | — | — | — | 6700 | 5400 | 4100 | 3400 | 2600 | 2400 | 1900 |
| 3.2 | — | — | — | — | 5700 | 4400 | 3600 | 2800 | 2500 | 2100 |
| 3.4 | — | — | — | — | — | 4700 | 3800 | 3000 | 2700 | 2200 |
| 3.6 | — | — | — | — | — | — | 4000 | 3200 | 2800 | 2300 |
| 3.8 | — | — | — | — | — | — | — | 3400 | 3000 | 2400 |
| 4.0 | — | — | — | — | — | — | — | — | 3200 | 2600 |
| 4.2 | — | — | — | — | — | — | — | — | — | 2700 |
| 4.4 | — | — | — | — | — | — | — | — | — | 2800 |
The maximum RPM values are determined assuming a standard flange diameter. Please contact us when using non-standard flanges.
| Saw Blade Diameter (mm) | Diameter of Flange (mm) |
|---|---|
| 205 | 80 |
| 255 | 100 |
| 305 | 100 |
| 355 | 120 |
| 405 | 120 |
| 455 | 120 |
| 500 | 160 |
| 550 | 160 |
| 600 | 160 |
| 650 | 160 |
