Steel / Carbon Steel

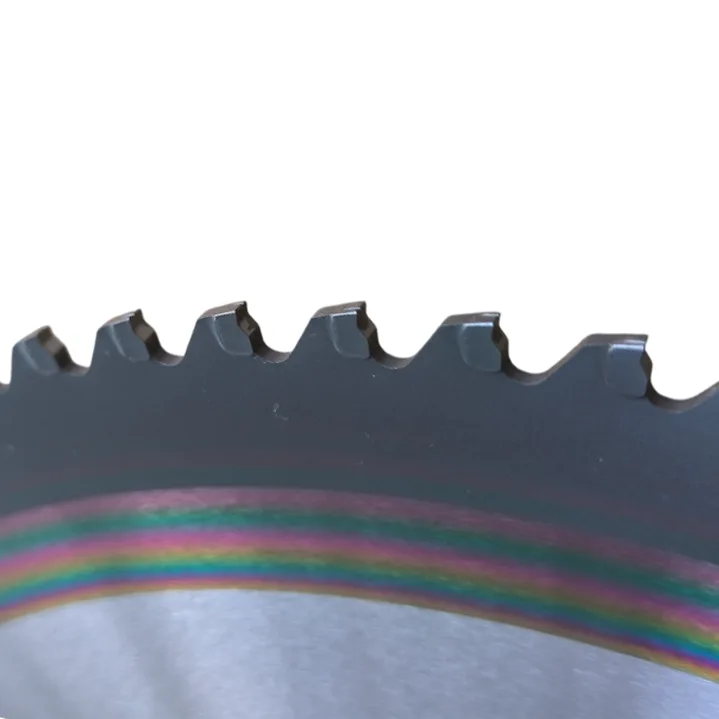

Cold Saw Blades for Steel Cutting

Product Code: CSSB

Cutting speed: 70m/min-150m/min. Tooth load: 0.04-0.1mm/tooth. Upgraded PVD coated cermet cold saw blades for mild, high carbon, and alloy steel, with longer life than the basic grade on lower and medium tensile steel cutting.

Grade:: Industrial
Machines:: Stationary high speed sawing machines
Materials:: Mild steel, medium carbon steel, high carbon steel, and alloy steel solids or thick-walled pipes
Applications:: Stationary high speed sawing of mild, medium carbon, high carbon, and alloy steel

OEM/ODM Materials & Processes

Body Material:: 80CrV2/SKS51
Tips Material:: Cermet
Coating:: PVD
Tension ring:: Visible or concealed configuration

Typical Specifications

Code	D Diameter (mm)	B Kerf (mm)	b Body (mm)	d Bore (mm)	Z Number of teeth	Tooth type	Pinholes
CSSB0240	240	1.8	1.5	32/40	60	TC	Custom
CSSB0250	250	1.5	1.3	32/40	54	TC	Custom
CSSB0251	250	1.5	1.3	32/40	72	TC	Custom
CSSB0252	250	1.5	1.3	32/40	80	TC	Custom
CSSB0253	250	2.0	1.7	32/40	54	TC	Custom
CSSB0254	250	2.0	1.7	32/40	72	TC	Custom
CSSB0255	250	2.0	1.7	32/40	80	TC	Custom
CSSB0256	250	2.0	1.75	32/40	54	TC	Custom
CSSB0280	285	1.5	1.3	32/40	60	TC	Custom
CSSB0281	285	1.5	1.3	32/40	72	TC	Custom
CSSB0282	285	2.0	1.7	32/40	54	TC	Custom
CSSB0283	285	2.0	1.7	32/40	60	TC	Custom
CSSB0284	285	2.0	1.7	32/40	72	TC	Custom
CSSB0285	285	2.0	1.7	32/40	80	TC	Custom
CSSB0286	285	2.0	1.75	32/40	60	TC	Custom
CSSB0287	285	2.0	1.75	32/40	72	TC	Custom
CSSB0288	285	2.0	1.75	32/40	80	TC	Custom
CSSB0310	315	2.3	2.0	32/40/50	80	TC	Custom
CSSB0360	360	2.0	1.7	32/40/50	60	TC	Custom
CSSB0361	360	2.0	1.7	32/40/50	72	TC	Custom
CSSB0362	360	2.0	1.7	32/40/50	100	TC	Custom
CSSB0363	360	2.5	2.3	32/40/50	80	TC	Custom
CSSB0364	360	2.5	2.3	32/40/50	100	TC	Custom
CSSB0365	360	2.5	2.3	32/40/50	80	TC	Custom
CSSB0366	360	2.5	2.3	32/40/50	100	TC	Custom
CSSB0367	360	2.6	2.3	32/40/50	60	TC	Custom
CSSB0368	360	2.6	2.3	32/40/50	80	TC	Custom
CSSB0369	360	2.6	2.3	32/40/50	100	TC	Custom
CSSB0380	380	2.5	2.3	50	48	TC	Custom
CSSB0381	380	2.5	2.3	50	80	TC	Custom
CSSB0382	380	2.5	2.3	50	100	TC	Custom
CSSB0420	425	2.7	2.3	50	50	TC	Custom
CSSB0421	425	2.7	2.3	50	60	TC	Custom
CSSB0460	460	2.7	2.3	50	40	TC	Custom
CSSB0461	460	2.7	2.3	50	50	TC	Custom
CSSB0462	460	2.7	2.3	50	60	TC	Custom
CSSB0560	560	3.0	2.5	50/80/90/140	44	TC	Custom
CSSB0561	560	3.0	2.5	50/80/90/140	60	TC	Custom
CSSB0750	750	3.4	2.7	50	60	TC	Custom
CSSB0751	750	3.4	2.7	50	80	TC	Custom
CSSB0752	750	3.4	2.7	50	100	TC	Custom
CSSB0753	750	3.4	2.7	50	120	TC	Custom
CSSB0754	750	3.4	2.7	50	140	TC	Custom

Specifications can be tailored to meet customer requirements.

Estimate your material savings: See how a thinner kerf increases workpiece yield with our Short-Stock Material Yield Calculator.

Typical Applications

Stationary high speed sawing of medium carbon steel, high carbon steel, and alloy steel solids where productivity and blade life both matter.
Thick-walled steel tube and pipe cutting on dedicated automatic circular sawing machines handling tougher material mixes than a basic mild-steel setup.
Cut-to-length production of shafts, forgings, flanges, gear blanks, suspension parts, and other demanding steel components.
Shops that regularly switch between low, medium, and higher-strength steels and want one coated cermet cold saw blade with broader capability.

Key Performance Advantages

PVD-coated cermet teeth improve wear resistance and heat resistance for medium carbon, high carbon, and alloy steel cutting.
Delivers noticeably longer blade life than the basic low-carbon grade when cutting low and medium carbon steel under comparable conditions.
Maintains smooth cut surfaces, stable squareness, and good productivity on dedicated stationary high speed sawing machines.
A practical upgrade when users need one cold saw blade platform that covers both routine carbon steel work and harder steel grades.

Problems This Cold Saw Blade Helps Solve

Rapid wear when uncoated cermet blades are pushed into tougher steel grades or frequent material changes.
Loss of productivity caused by stepping down cutting parameters too far on medium or high carbon steel.
Inconsistent end quality and excessive post-machining on harder solid sections.
Higher total cost per cut caused by short blade life on mixed carbon steel and alloy steel work.

Application Notes

Use this grade when your process regularly includes medium carbon steel, higher carbon steel, alloy steel, or when you want longer life on low and medium carbon steel than the entry-grade cermet option.
Stable machine condition, rigid clamping, good coolant delivery, and controlled chip evacuation are still essential to protect the coated tooth edge.
This product is positioned above the low-carbon cermet grade, but it is still not the preferred first choice for stainless steel as a main production material.
If stainless steel, high-alloy steel, or titanium becomes the main target, move to Cold Saw Blades for Stainless Steel Cutting.
